Description

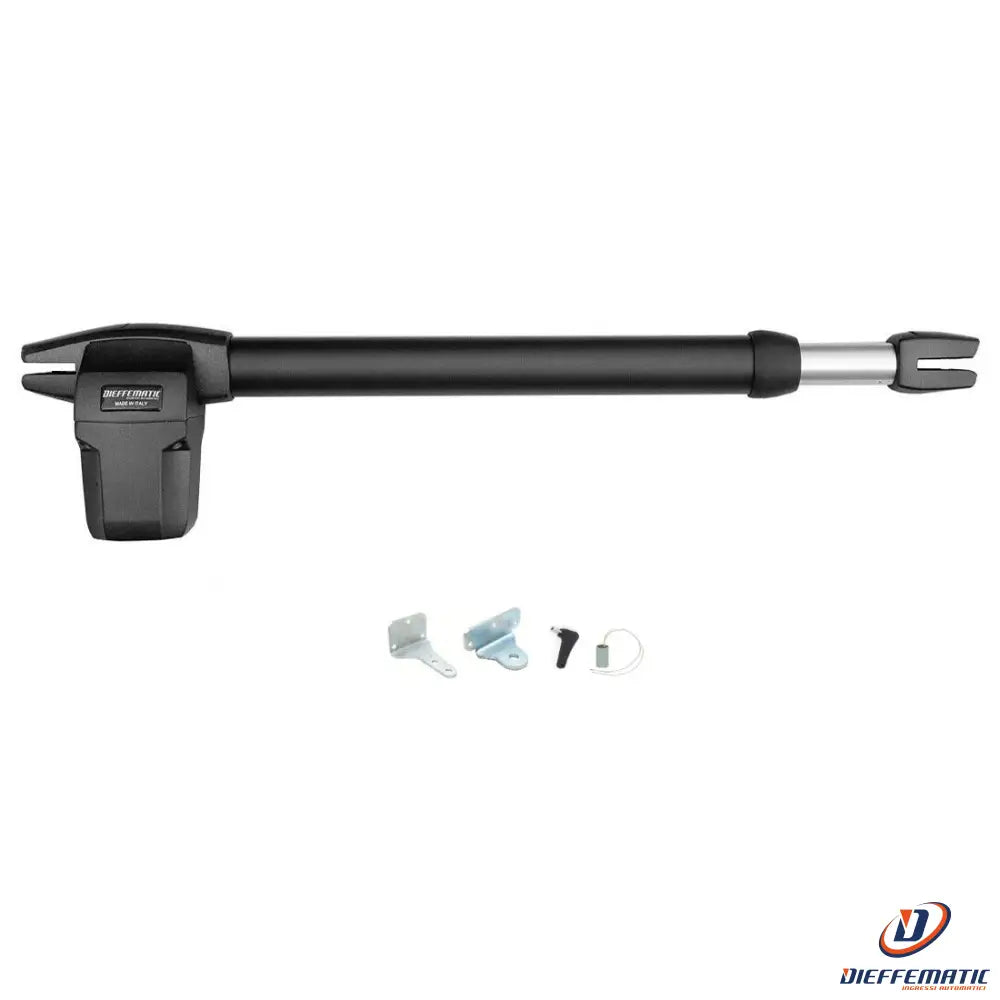

ACTUATOR for a SWING GATE
Professional
**For leaves up to 2.50 m and 250 kg**
Mod. BHR 230v STROKE 300
BRACKET DIMENSIONS:
Linear electromechanical actuator for multi-unit residential use, all-metal construction, aluminium rod.
Once correctly installed, BHR automation systems require virtually no maintenance. Installation does not require any modifications to the existing gate!
High-performance electric motor.
The actuator is designed for leaves weighing no more than 250 kg and measuring no more than 2.50 metres in length. The aluminium housing and bronze gear components ensure a long service life.
The actuator maintains the gate in the locked position when open and closed without requiring an electric lock for the leaves. Convenient release using the triangular key located on the motor assembly.
CLICK THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
CONTENTS:
No. 1 linear electromechanical actuator for multi-unit residential use, for outdoor use
Emergency release. No electric lock required.
Motor speed: 1,400 rpm. Power: 280 W. Adjustable thrust from 500 to 3000 N. Maximum opening angle: 100°.
Power supply: 220 V. 50 Hz. Weight: 6.0 kg
No. 1 installation accessories
No. 1 mechanical and electronic installation instructions in ITALIAN
24-month warranty
