Kit Fire Alarm System Kitchen And Oven Detector Securvera Sv-kaebpreise

FIRE ALARM SYSTEM KIT FOR KITCHEN AND OVEN THERMAL VELOCITY DETECTOR 2 FIRE DOOR LOCKING BUTTON REI BADENIA - SV-KAEBPREISE

Mod. SV-KAEBPREISE

SKU: SV-KAEBPREISE

SV-KAEBPREISE Fire prevention system kit for boiler room. 1) Conventional microprocessor fire control panel with 2 zones. Each zone supports 20 active detectors (Single detector standby absorption 50 μA in alarm 25 mA); plus 12 passive, up to a maximum of 32 sensors; as buttons. For a total of 64 sensors. barriers, as long as it does not feed from the area. LED single event signaling. Three passwords for control and command access on three different levels of authority. Programming (via buttons on the front panel) zones in modes: pre-alarm, alarm, test, maintenance. Silenceable and excludable outputs: sirens, telephone call. 2 OC outputs. Zone alarm repetition. 2 fire and fault alarm relay outputs. 2 supervised fire pre-alarm outputs. 24Vdc auxiliary power supply. Power supply 220 V. 50/60 Hz. Buffer battery charger, 27.6 V. 1.5 A. Contains 2 Fiamm 12 V. 1.2 Ah batteries. Working temperature from - 5° to + 45°C. Humidity 95%. IP 40 protection. Painted metal container. Dimensions L350XH290XP95 mm. Weight 3.5 kg. Certified EN54-2, EN54-4 CPD. 1) Percussion Badenia, 90 dB sound eardrum. IP 34. 1) Rate-of-rise detector with fixed temperature of 62° C. 2) Electromagnets blocking fire doors for REI doors. Product assembled and selected in the Securvera Roma factory. Guaranteed by law against defects and manufacturing defects

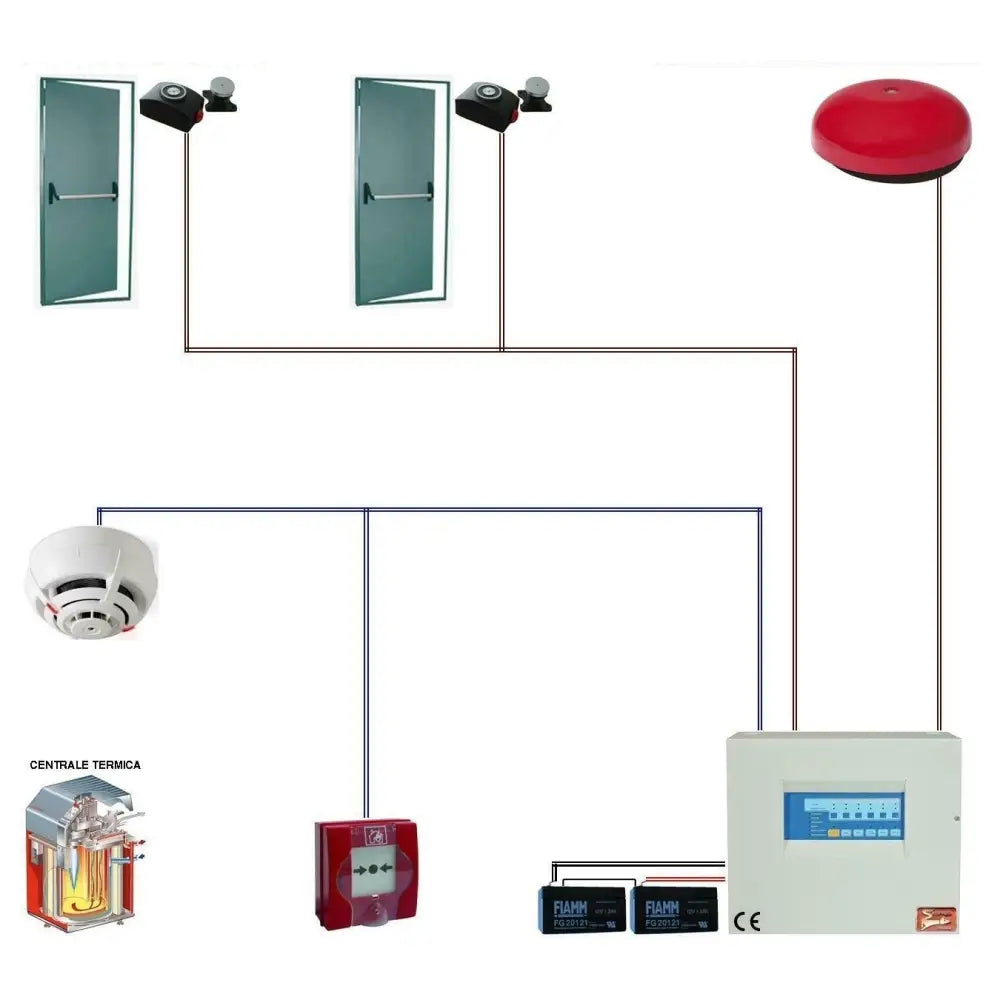

LIST OF COMPONENTS FOR A FIRE ALARM SYSTEM TO PROTECT THE: HEATING PLANT; OVEN; KITCHEN. COMPONENTS COMPLYING WITH CE LAW:
01 SF-CFD Conventional Fire Control Panel 2 Zones EN54-2 EN54-4 CPD Manages: 64 Sensors. Command Outputs for Alarm and Intervention and REI Doors
02 SF-112 Battery 12 V. 1.2 Ah Fiamm Buffer battery L97XH50XP48.5 mm. Valve Regulated AGM VRLA Loaded and Selected by Securvera
01 SV-RTC Conventional Temperature Detector Fixed Threshold 62° C. Absorption 50 µA in Alarm 25 mA Plug-in fixing. Repeater output
01 SF-P5R Conventional Resettable Manual Button, Red. Manual Emergency Request for Fire Remains in Alarm until Reset IP 40
02 SF-BE5 REI fire door lock electromagnet White color Power supply. 24 Vdc. Absorb. 50 mA Traction Force 50 Kg. C/Release Button
01 SF-CBC Badenia or Red Electromechanical Bell 90 dB Fire Alarm Signaling Power Supply. 24 Vdc. Absorbs 50 mA. Dimensions ø152XS55 mm
01 SV-GAR Guarantee Certificate; Securvera Manufacturer's Warranty As per Law: 24 Months; Qualified Installation Compliant with DM37/2008 for life
01 SV-IST Detailed Instructions for Assembly. Current fire regulations on risk assessment must be respected


Securvera Registered Trademark 663069: Automated Entrance Control Sensors Alarm Wire and Fire Radio
Instructions or Installation Manual: You will find under the writing "CLICK TO GET THE GUIDE OR MANUAL"
Use Application Functions: Fire Fighting System Kit Thermal Power Station SOS Extinguishing Intervention
Italian Manufacturer CE Products: Fire Alarm Control Panels Smoke Sensors Temperature Badenie Sirens
Electrical Stress Protection: Polarity Reversal Live Existence Control Line Isolator Sensors
Country of origin and Manufacture: Made in Italy in the Securvera factory and Carefully Selected
Payment Forms or Systems: State Deductions or Tax Accounting via Traceable Bank Transfer
Warranty Beyond the Legal Terms: Product Guaranteed by Securvera for Life Against Factory Defects and Defects
Compatibility other brands: Badenie Smoke Flame Temperature Detectors Conventional Systems
Installation Instruction Manual: Read the Manual Weights Measurements Functions Necessary Accessories Carefully
Article Code Model Type: SV-KAEBPREISE Fire Fighting System Control Heating System Kit
