Description
Complete Kit for Gate Automation
for TWO SWING LEAVES
Professional
**For use with gate leaves up to 2.50 m and weighing 350 kg**
Model BHR 230 V
BRACKET DIMENSIONS:
Electromechanical linear actuator for multi-user use, all-metal construction, aluminium rod.
Once correctly installed, BHR automation systems require virtually no maintenance. Installation requires no modifications to the existing gate!
High-performance electric motor.
The actuator is designed for gate leaves weighing no more than 350 kg and measuring no more than 2.50 metres in length. The aluminium body and bronze gear core ensure a long service life.
The actuator locks in the open and closed positions without requiring an electric lock for the gate leaves. Convenient release with a triangular key located on the motor assembly.
Control unit with built-in receiver for controlling 1 or 2 swing leaves.
Electronic clutch with convenient, quick travel adjustment; the second leaf delay can also be adjusted.
Slowdown during opening and closing.
Suitable for symmetrical and asymmetrical gates, thanks to the ability to control each gate leaf's travel independently.
CLICK THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONICS INSTALLATION MANUAL

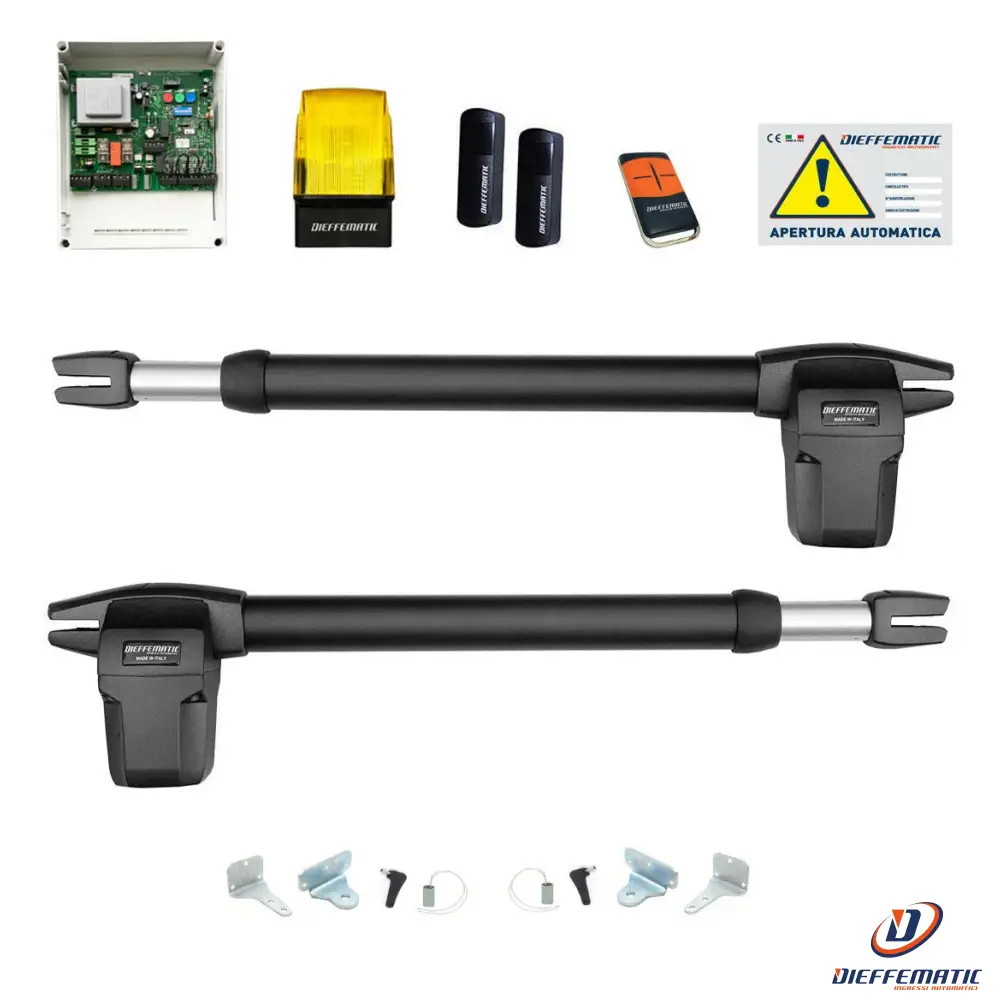

KIT CONTENTS:
No. 2 electromechanical linear actuators for residential and multi-user use, for outdoor use
Emergency release. No electric lock required.
Motor speed 1,400 rpm. Power 280 W. Adjustable thrust from 500 to 3,000 N. Maximum opening angle 100°.
220 V, 50 Hz power supply. Weight: 6.0 kg
No. 1 control unit with waterproof enclosure, featuring motor force and slowdown adjustment trimmers, built-in obstacle detection, slowdown during opening and closing, 4 operating modes: step-by-step, semiautomatic 1 and 2, automatic multi-user. Pedestrian input, courtesy light, overvoltage protection, input for photocells and safety edges, electric lock control, reverse pulse, adjustable gate leaf offset during closing/opening, closing time adjustment.
No. 1 single-channel radio receiver built into the control unit (433.9 MHz)
No. 1 antenna built into the control unit, range 40 metres (433.9 MHz)
No. 1 4-channel Rolling Code remote control
No. 1 pair of wall-mounted photocells
No. 1 230 V LED flashing light
No. 1 warning sign
No. 1 installation accessories
No. 1 mechanical and electronic installation manual in ITALIAN
24-month warranty
