Description

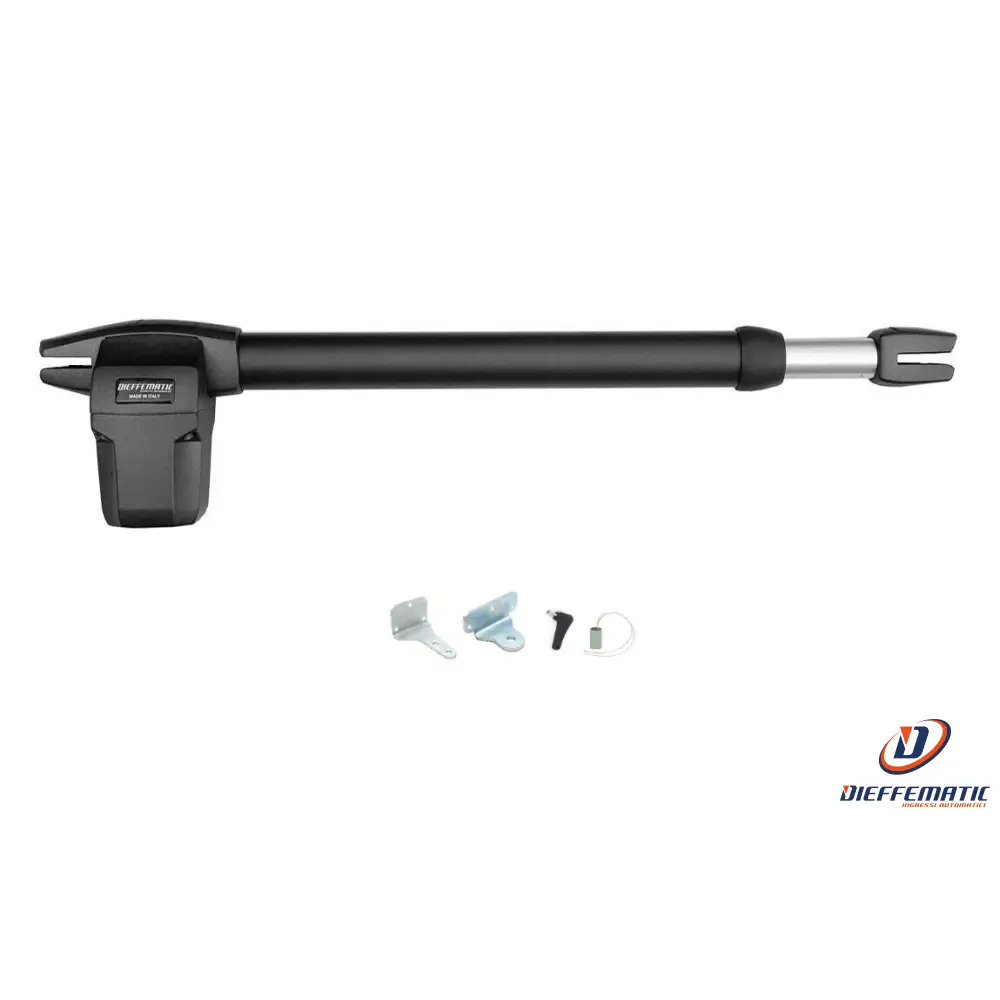

ACTUATOR for swing gate
Professional
**For gate leaves up to 2.50 m and 250 kg**
Mod. BHR 230 V STROKE 300
BRACKET DIMENSIONS:
Linear electromechanical actuator for shared residential use, all-metal construction, aluminium rod.
Once correctly installed, BHR automation systems require virtually no maintenance! Installation does not require any modifications to the existing gate.
High-performance electric motor.
The actuator is designed for gate leaves weighing no more than 250 kg and measuring no more than 2.50 metres in length. The aluminium housing and bronze gear mechanism ensure a long service life.
The actuator holds the gate in both the closed and open positions without requiring an electric lock; it features a convenient release using a triangular key located on the motor assembly.
CLICK THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
CONTENTS:
No. 1 linear electromechanical actuator for shared residential use, for outdoor use
Emergency release. No electric lock required.
Motor speed: 1,400 rpm. Power: 280 W. Adjustable thrust from 500 to 3,000 N. Maximum opening angle: 100°.
Power supply: 220 V. 50 Hz. Weight: 6.0 kg
No. 1 set of installation accessories
No. 1 mechanical and electronic installation instructions in ITALIAN
24-month warranty
