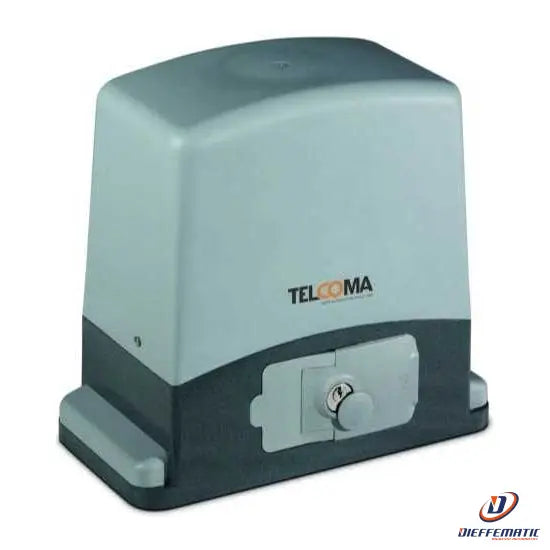

IRREVERSIBLE GEARMOTOR FOR SLIDING GATES
Mod. EVO 600
230 V electromechanical gearmotor, grease-bath lubricated, with magnetic limit switch, encoder and built-in control unit.
For gates up to 600 kg.
Electromechanical gearmotor ideal for sliding gates up to 600 kg.
Complete with encoder, magnetic limit switches and built-in control unit.
Safe thanks to the encoder's precision and sensitivity and slow-downs during opening and closing.
Convenient thanks to the advanced control unit with plug-in receiver and self-learning.
Versatile, with height and depth mounting adjustments.
Reliable, with a robust base made of corrosion-resistant treated aluminium and a powerful 230 Vac motor mounted on bearings.
Release with coded lock.
MOTOR FEATURES OF THE EVO600 N KIT
Motor voltage 230 V
Max. motor current 3,4 A
Motor power 800 W
Maximum torque 21 Nm
Thrust 540 N
Max. gate weight 600 kg
Gate speed 10 m/min
Duty cycle 40%
Encoder YES
Magnetic limit switches YES
Thermal protection 150 °C
Lubricant: TS10 grease
ELECTRONIC CONTROL UNIT FEATURES OF THE EVO 600 N KIT
Model T101
Power supply voltage 230 V
Max. current 6,3 A
Electronic slow-down YES
Compatible with Sun Power NO
GENERAL FEATURES OF THE EVO 600 N KIT
Operating temperature -20 +55 °C
IP 44 protection rating
Weight 14 kg
24-month warranty
