Description

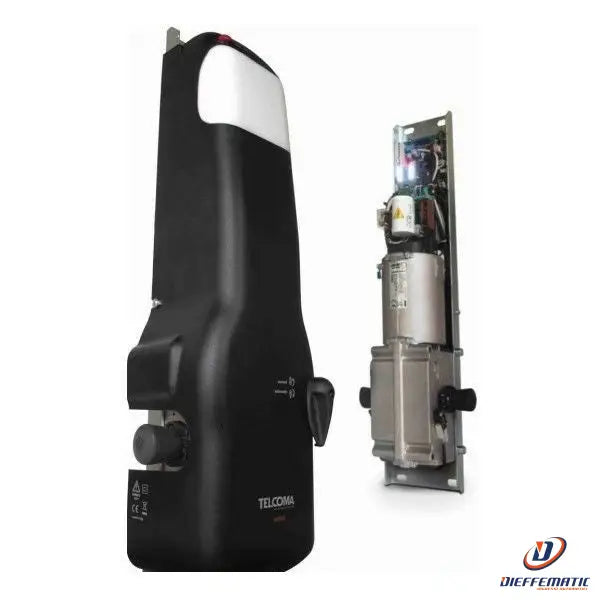

ELECTROMECHANICAL GEAR MOTOR FOR UP-AND-OVER DOORS
Mod. STAR 1E
Irreversible 230 V electromechanical gear motor for up-and-over doors up to 8 sqm.
Without control unit.
Safe thanks to the encoder's precision and sensitivity and the slowdowns during opening and closing.
Convenient thanks to the control unit with plug-in receiver and self-learning. Built-in LED courtesy light.
Versatile, with a full range of accessories for every installation requirement.
FEATURES
Motor voltage 230V
Max. motor current 1,7A
Motor power 360 W
Maximum torque 400 Nm
Max. up-and-over door area 8 m2
Operating time 20 sec
Duty cycle 40%
Capacitor 10 µF
Encoder Optional
Electric limit switches Optional
Control unit model -
TS10 grease lubricant
Operating temperature -20 +55 °C
IP 30 protection rating
Weight 9 Kg
24-month warranty
