Description

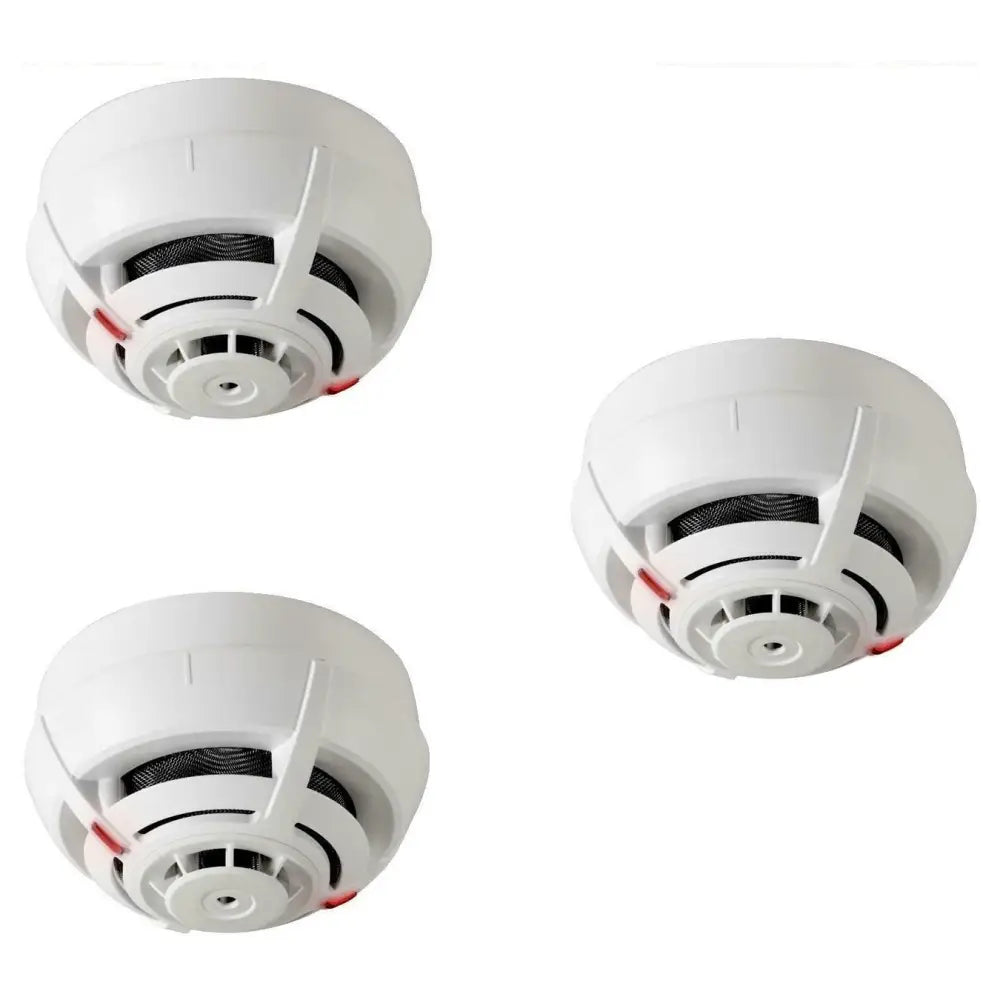

FIXED-TEMPERATURE HEAT DETECTOR 62° C 3-PIECE FIRE ALARM SENSOR RATE-OF-RISE CONVENTIONAL LOOP LED STATUS OUTPUT - SV-RTCSMFTRTD
Mod. SV-RTCSMFTRTD
SKU: SV-RTCSMFTRTD
SV-RTCSMFTRTD conventional fixed-temperature detector, 62° C. Rate-of-rise technology responds to rapid temperature increases and when the set threshold is exceeded. The alarm is activated by either condition. To test the detector, bring a small magnet close to it; the alarm is activated. This does not test the electronic circuitry. Test the rate-of-rise sensor using hot air (from a hair dryer). Loop power supply 12-28Vcc. Current consumption 50?A at 24Vcc. Alarm current consumption 25mA. 360° LED visibility. Output for remote indication (via optional SF-LRS) 14 mA at 24Vcc. Alarm temperature threshold setting 62° C. Response class A2R. Operating temperature -10°C / +70°C. Maximum relative humidity 93% non-condensing. IP20 protection rating. White ABS housing. Dimensions (without base): mm 106 x 52h Dimensions (with base): mm 106 h. Weight 150 g. Standards: EN54-5 CPR certificate: 0068-CPR-006/2015. Product assembled and selected at the Securvera facility in Rome. Guaranteed by law against manufacturing defects and faults
CE COMPONENT LIST FOR EXPANDING OR INSTALLING A FIRE ALARM SYSTEM IN COMPLIANCE WITH THE LAW:
03 SV-RTC Conventional fixed-temperature detector, 62° C threshold. Current consumption 50 µA; 25 mA in alarm. Plug-in mounting. Repeater output
01 SV-GAR Warranty certificate; Securvera manufacturer's warranty as required by law: 24 months; qualified installation compliant with D.M.37/2008 for life
01 SV-IST Detailed installation instructions. Current fire safety regulations on risk assessment must be followed
Securvera Registered Trademark 663069: Fire protection, automation, access control, wired and wireless alarm sensors
Instructions or Installation Manual: See below for the words "CLICK TO GET THE GUIDE OR MANUAL"
Use, application and functions: Fire protection system kit for boiler room, activation of SOS shutdown
Italian CE product manufacturer: Fire alarm control panels, smoke and temperature detectors, Badenie sirens
Electrical protection against stress: Polarity reversal, sensor life monitoring, line isolators
Country of origin and manufacture: Made in Italy at the Securvera factory and carefully selected
Payment methods or systems: State tax deductions or tax accounting via traceable bank transfer
Warranty beyond the statutory period: Securvera product guaranteed for life against manufacturing defects and faults
Compatibility with other brands: Smoke, flame, temperature and Badenie detectors for conventional systems
Installation instruction manual: Read the manual carefully for weights, dimensions, functions and required accessories
Item code, model, type: SV-RTCSMFTRTD Conventional fixed-temperature detector
CLICK HERE TO DOWNLOAD THE MANUAL OR PRACTICAL DIY GUIDE:
MANUFACTURER'S MANUAL
