Description

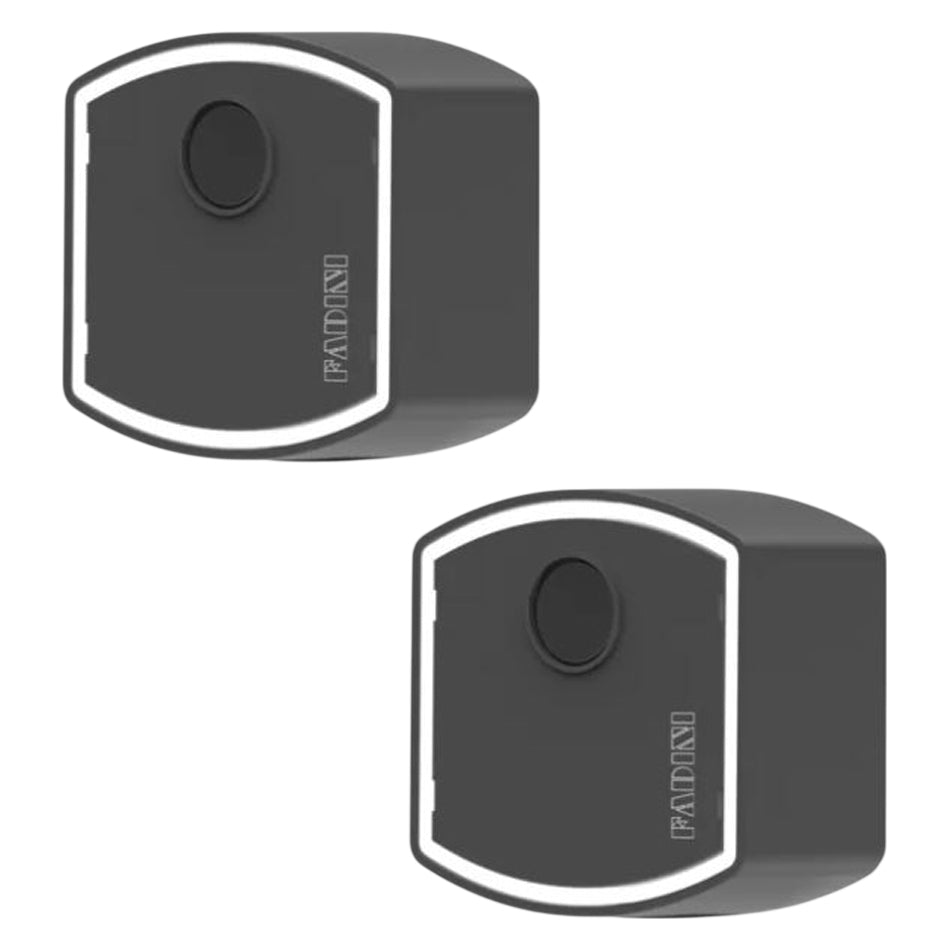

FADINI ZERO.PH 140L
Pair of wall-mounted photocells
Design
Modulated infrared photocell (type D - EN 12453)
Sealed plastic housing with protected optics
Integrated white LED frame
Installation
Compact: minimum projection of 18 mm (recessed version)
Weather-resistant ABS housing
Compatible with dedicated posts and supports
Safety and compatibility
Range: up to 20 m
Relay output (compatible with ELPRO control units and existing systems)
Power supply: 24 Vac/dc
TECHNICAL FEATURES:
Modulated light frequency (Hz): 625/320
Supply voltage (Vac/dc): 12/24
Max. transmitter current draw (mA): 26
Max. receiver current draw (mA): 36
Operating temperature (°C): -20 ÷ +70
Output contact (Vdc, A/Vac, A): 30, 1/125, 0.3
Range (m): 20
Contact response time (ms): 6
IP rating: 55
24-month warranty
