Description
Touch Electronic Key C408 Key 64-Bit Kit Processor Panel Reader 3 Pre-Programmed Keys 3 Billion Code Combinations 12/28 Vac Relay 10 A 24 V - SA-KBDTC1MLUB
Mod. SA-KBDTC1MLUB
SKU: SA-KBDTC1MLUB

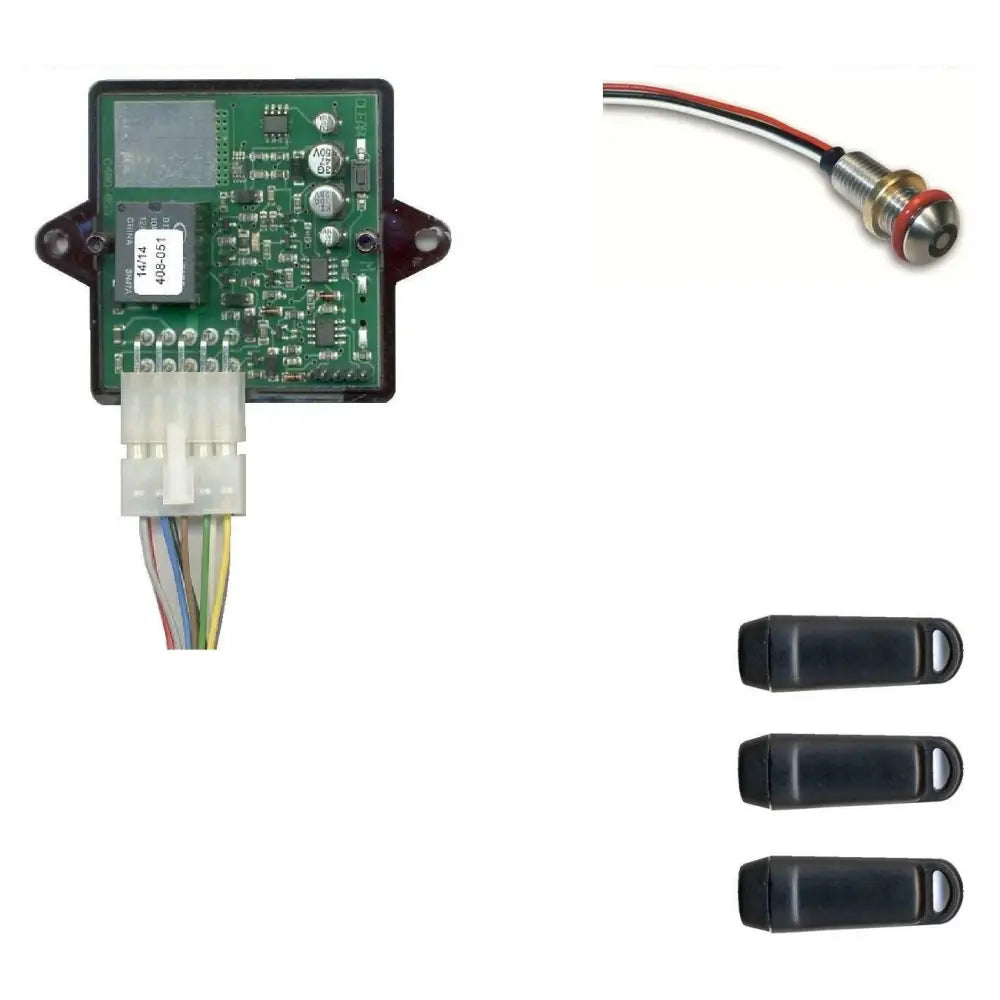

SA-KBD high-security inductive electronic key kit, with three self-learning keys pre-programmed; one key marked with a ring is the master key, required to program additional keys. The key stores a random code from 3 billion possible combinations. No electrical contacts. Universal panel reader, suitable for any 501 module. A high-brightness red LED is located inside the reader housing, useful for remote signaling or use in low-light conditions. 3-wire connection, maximum length 200 meters. Reader dimensions: external tapered head 10 mm; threaded body with fixing nut, L 20XØ8 mm. Stores up to 60 keys. The key has two outputs for controlling two LEDs: one indicates the system status and the other the programming phase. Transistorized tamper output 50 mA. Power supply 12-28 Vac/dc. Standby current 8 mA. Relay operation: pulse, timed from 1 to 27 seconds, or continuous. Changeover relay rated 10 A at 24 V, resistive loads. Compatible with all alarm control panels, access control equipment, elevators, and other safety controls. Overall dimensions of the processor, excluding the two mounting tabs and connector, L60XL60XS28 mm. Weight 72 g. Product selected at the Securvera factory in Rome. Guaranteed in accordance with the law. All our products are manufactured in compliance with European Directives: R&TTE 99/05/EC CEE 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476 and subsequent amendments, with continuous updates. Product assembled and selected at the Securvera factory in Rome. Guaranteed by law against manufacturing defects and faults
LIST OF COMPONENTS OR ACCESSORIES IN THE ELECTRONIC KEY KIT, USED TO SECURELY ACTIVATE SECURITY SYSTEMS:
01 SA-KBD Electronic Key Kit 12/28 Vac. 10A/30 Vac Relay Output 3 Keys Panel Reader or Socket 2 Signaling Outputs
01 SV-GAR 24-Month Warranty Certificate, Lifetime Coverage Against Manufacturing Defects: Installation by Qualified Personnel D.M.37/2008
01 SV-IST Detailed Installation Instructions; The Following Must Be Observed: Fixings, Special Connections (PDF Manual)
Securvera Registered Trademark 663069: Automation Systems, Entry Control, Wired and Wireless Alarm Sensors, Fire Protection
Instructions or Installation Manual: See Below for "CLICK TO GET THE GUIDE OR MANUAL"
Use/Application/Functions: Electronic Key for Activating, Triggering, and Disarming Alarm Systems
Italian Manufacturer of CE Products: Fire Alarm Control Panels, Smoke and Temperature Sensors, Sirens
Electrical Protection Against Stress: Reverse Polarity, False Key Detection, Circuit Inhibition, Tampering
Country of Origin and Manufacture: Made in Italy at the Securvera factory and carefully selected
Payment Methods or Systems: Government Tax Deductions or Tax Accounting via Traceable Bank Transfer
Warranty Beyond the Statutory Period: Securvera Lifetime Warranty Against Manufacturing Defects and Faults
Compatibility with Other Brands: Alarm Systems of Any Brand and Type, Security Door Openings
Installation Instruction Manual: Carefully read the manual for weights, measurements, functions, and required accessories
Item Code/Model/Type: SA-KBDTC1MLUB Touch Digital Electronic Key 12/24 Vacdc
CLICK HERE TO DOWNLOAD THE MANUAL OR PRACTICAL DIY GUIDE:
MANUFACTURER'S MANUAL
