Description

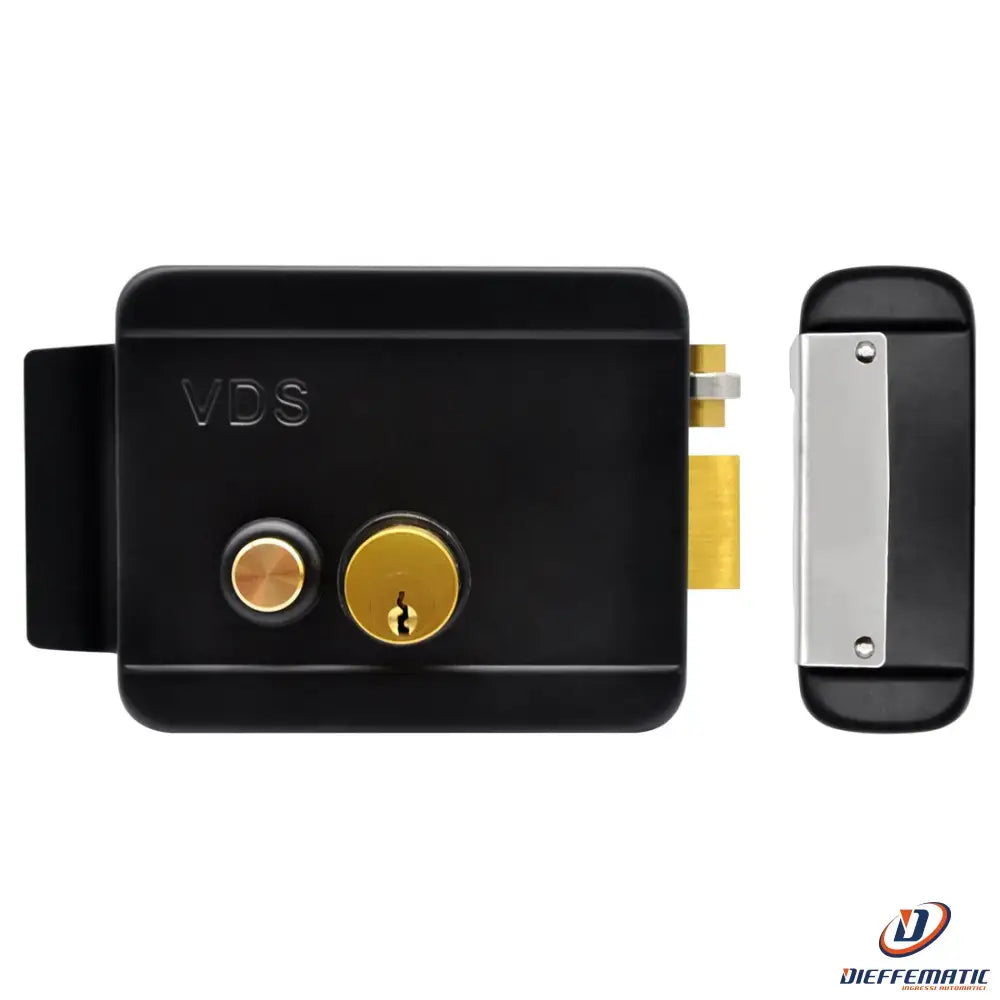

ElectricCentral lock with button, 12V, and three keys included
MOD. 167/E
A professional solution designed to ensure a high level of security and protection for doors, gates and external gates.
The key feature of this model is its flexible installation: thanks to the latch reversal procedure, the lock can easily be configured for both inward opening and outward opening gates. This feature allows the model (right-hand) to be perfectly adapted to the structure's swing direction during installation.
The opening can be conveniently controlled by an electric pulse (e.g. from a door entry system) or by pressing the integrated button, which can be enabled or disabled at any time by turning the key.
Applications
Access control systems: Ideal for integration with door entry and intercom systems.
Applications: Ideal for both residential and industrial installations.
Compatibility: Suitable for hinged doors, pedestrian gates and structures with hinges, up to a maximum weight of 300 kg.
Technical Specifications
Power supply: 9-12Vdc (optimal operation with a voltage of at least 8V directly at the terminal block).
Electric pulse duration: Maximum 8 seconds to preserve coil integrity.
Configuration: Suitable for RH mounting, reversible for inward/outward opening.
Adjustment: Closing spring load adjustable via internal hex nut, according to gate weight.
Wiring: Requires cables with a cross-section of at least 1 mm².
Housing dimensions: 130 x 106 mm.
Cylinder diameter: Ø 25 mm.
24-month warranty
