Description

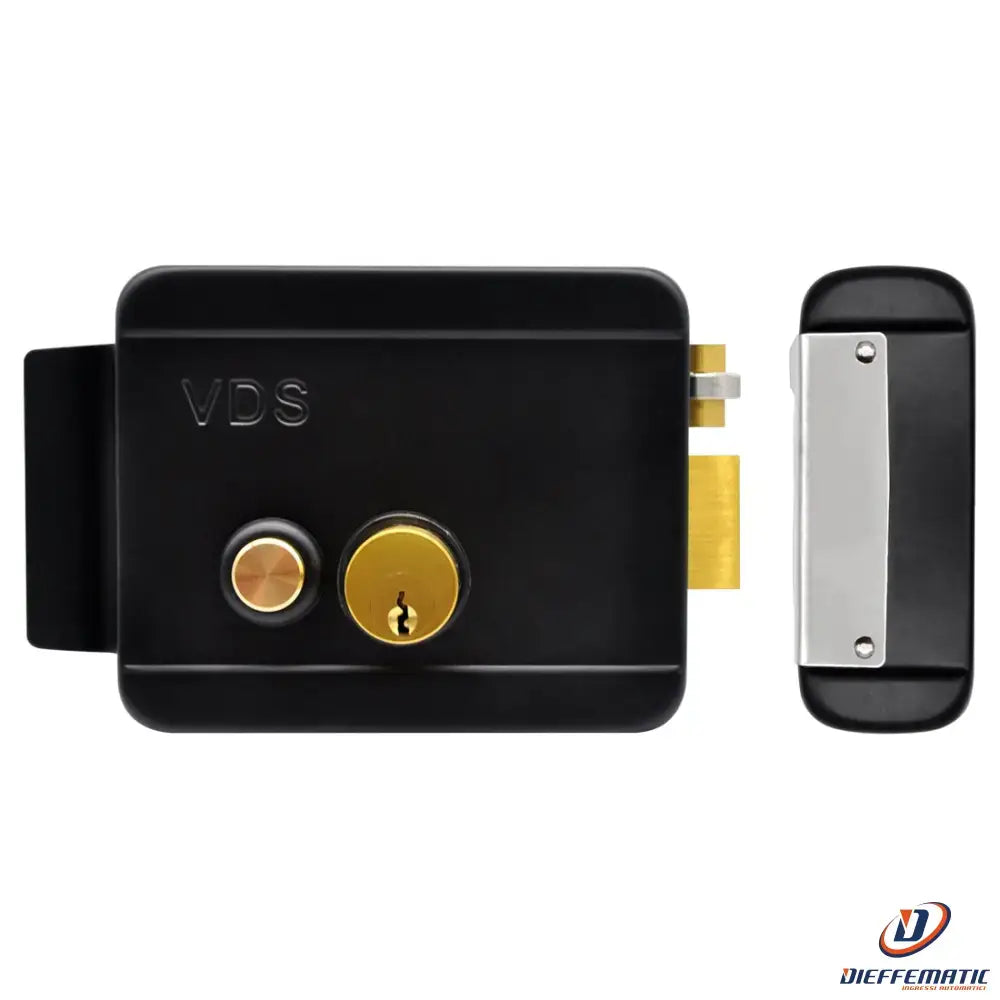

Electric lock Central lock with 12V button and three keys included
MOD. 167/E
Professional solution designed to ensure a high level of security and protection for doors, large doors and exterior gates.
The key feature of this model is its flexible mounting: thanks to the latch reversal procedure, the lock can be easily configured for both inward opening and outward opening of the gate. This feature allows the model (right-hand) to be perfectly adapted to the direction in which the structure swings during installation.
The lock can be conveniently opened via an electric pulse (e.g. from an intercom) or by pressing the integrated button, which can be disabled or enabled at any time by turning the key.
Applications
Access control systems: Ideal for integration with intercom and door entry systems.
Applications: Ideal for both residential and industrial installations.
Compatibility: Suitable for hinged doors, pedestrian gates and structures with hinges weighing up to 300 kg.
Technical Specifications
Power supply: 9-12Vdc (optimal operation with a voltage of at least 8V directly at the terminal block).
Electric pulse duration: Maximum 8 seconds to preserve coil integrity.
Configuration: Suitable for right-hand mounting, reversible for inward/outward opening.
Adjustment: Closing spring load adjustable via internal hex nut, according to the weight of the gate.
Wiring: Requires cables with a cross-section of at least 1 mm².
Body dimensions: 130 x 106 mm.
Cylinder diameter: Ø 25 mm.
24-month warranty
