Description

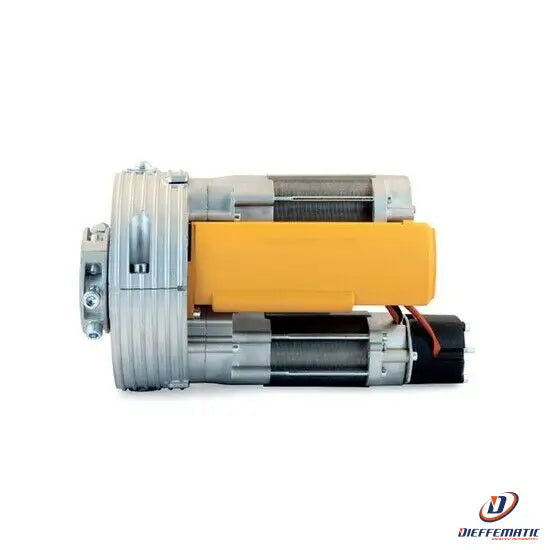

Automation for Roller Shutters
WITH ELECTRIC BRAKE
360 kg
FOR 76 MM SHAFT
Universal
The quality of the materials makes this motor lightweight, quiet and compact, ensuring excellent operating life.
Features:
Power supply: 230 Vac - 50 Hz
Extremely easy to install, even on existing roller shutters, thanks to the device's ability to split into two parts that can be rejoined on the spring shaft.
Built-in limit switches are easy to adjust.
The gearbox is irreversible and includes an electric brake and manual release.
Central shaft: Ø 76 mm
Spring housing: Ø 240 mm
230 V 50 Hz/60 Hz
TORQUE (Nm): 400
R.P.M.: 8
DUTY CYCLE (min): 4
POWER (W): 1260
CURRENT DRAW (A): 5.4
CLICK THE LINK FOR THE INSTRUCTION MANUAL:
MANUFACTURER'S INSTRUCTION MANUAL
CONTENTS:
1 electromechanical actuator with a cast aluminum housing and a high-performance electric motor. 220 V, 50 Hz power supply. Weight: 10.3 kg
1 set of installation accessories
1 set of mechanical and electronic installation instructions in ITALIAN
24-month warranty
