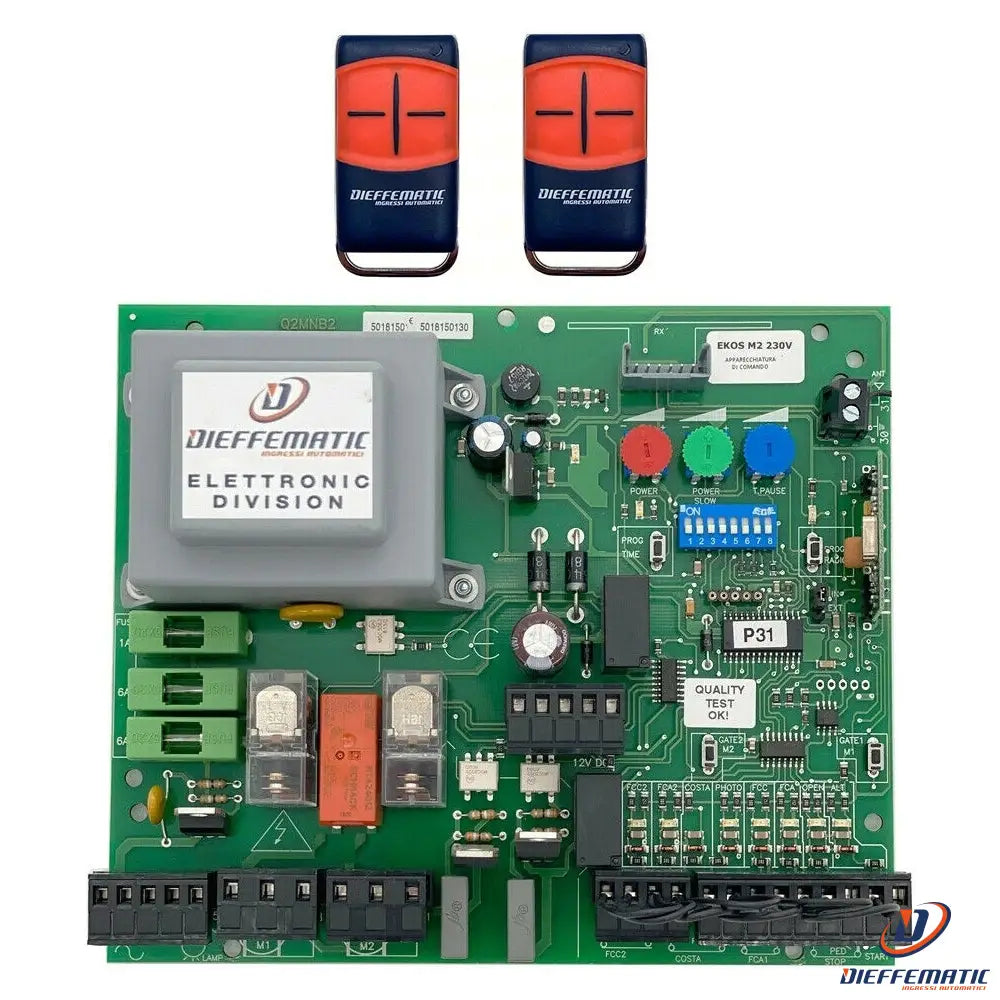

230V Control Unit for Swing Gates
433.92 MHz Receiver

+ N 2 4-channel Remote Controls

Mod. EKOS-M2 230V + 2 EQUO PLUS

UNIVERSAL
for electromechanical and hydraulic motors
Professional

1. GENERAL INFORMATION

The universal self-learning control unit is designed to automate an entrance with 1 or 2 230VAC motors. It features an innovative self-learning procedure for quick installation and four trimmers for fine adjustment of the main parameters: force, pause time, obstacle detection sensitivity, and closing delay between the two motors.

Available options:

- quick self-learning programming, in which the control unit automatically performs the operating-time learning cycle and sets the start of deceleration, both when opening and closing, at 90% of the cycle.

- professional programming, which allows the installer to determine when the gate leaves begin to decelerate, enable pedestrian opening via radio, and set how safety devices operate.

CLICK THE LINK FOR THE INSTRUCTION MANUAL:

MANUFACTURER'S INSTRUCTION MANUAL

2. MAIN FEATURES

• Control and operation of automated entrances with 1 or 2 230VAC motors (max. 1/2 Hp)

• Simplified and professional self-learning procedure to learn operating and deceleration times and detect safety devices.

• Motor force adjustable from 50-100% using a trimmer.

• Customisable partial (pedestrian) opening

• Hold-open time adjustable from 0 to 60 seconds using a trimmer.

• Obstacle detection response time adjustable from 0.1 to 3.0 seconds using a trimmer.

• Motor closing delay adjustable from 3 to 30 seconds using a trimmer

• 12V 15W electric lock control

• Courtesy light control

• Built-in 433MHz receiver

• 254 radio codes can be stored

• Reprogrammable Flash microprocessor

• Complies with relevant European Directive: R&TTE 99/05/CE

• Compatible with fixed-code or rolling-code remote controls. Compatibility with other brands must be checked

WARNING: Remote Control Compatibility Guide

The receiver built into the control unit is not universal; it communicates specifically with certain 433.92 MHz coding systems. The exact list of compatible models is provided below:

1. Compatible ROLLING CODE Remote Controls

The control unit supports the high-security rolling code systems used by the following brands and models:

Dieffematic: Equo Plus, Equo X, E010, Equo Slim, Tx-e models

BFT: Mitto and Cool models

2. FIXED-CODE Remote Controls and Universal Control

If you use fixed-code remote controls, compatibility is guaranteed with:

Aster 21/a and Aster 31/1 models

Note on universal remote controls: Aster 21/a and Aster 31/1 models can be used as "master" controls to pair commercial universal remote controls. Simply clone the code directly from one remote control to another to make them immediately operational with the control unit.

3. TECHNICAL SPECIFICATIONS

Control unit power supply: 230VAC

Motor output: 2 x 1/2Hp

Motor current: Max. 8 Amperes

Accessory power supply: 24 VDC - 750 mA

Operating temperature: -20°C / + 55 °C

Programming parameters: stored in EE-PROM

Function controller: microprocessor with watchdog

24-month warranty
