Control Unit for 230 V Swing Gates
433.92 MHz Receiver

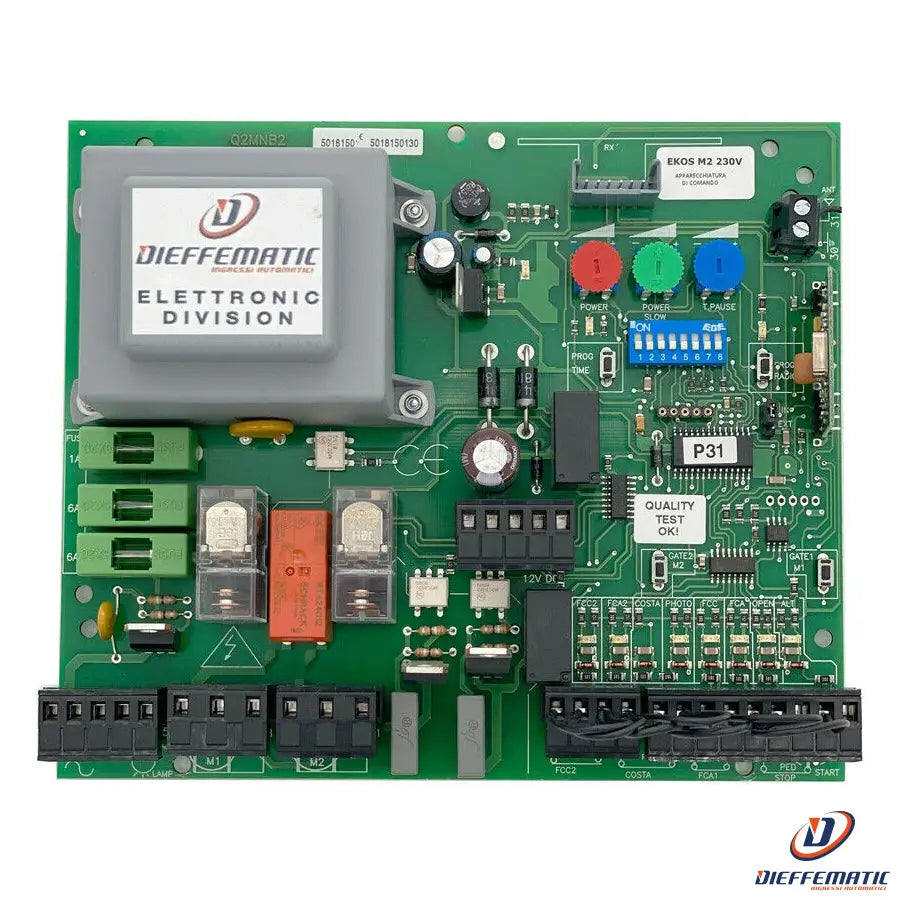

Mod. EKOS-M2 230 V

UNIVERSAL
for electromechanical and hydraulic motors
Professional

1. GENERAL INFORMATION

This universal self-learning control unit is designed to automate an access point with 1 or 2 230 VAC motors. It features an innovative self-learning procedure for quick installation and four trimmers for fine-tuning the main parameters: force, pause time, obstacle detection sensitivity and closing delay between the two motors.

Available options:

- Quick self-learning programming, in which the control unit automatically runs a cycle to learn the operating times and sets the start of deceleration, both when opening and closing, at 90% of the cycle.

- Professional programming, which allows the installer to set when leaf deceleration starts, enable pedestrian opening via radio, and select how the safety devices operate.

CLICK THE LINK FOR THE INSTRUCTION MANUAL:

MANUFACTURER'S INSTRUCTION MANUAL

2. MAIN FEATURES

• Controls and manages automated access systems with 1 or 2 230 VAC motors (max. 1/2 Hp)

• Simplified and professional self-learning procedure to learn operating and deceleration times and detect the presence of safety devices.

• Motor force adjustable from 50-100% using a trimmer.

• Customizable partial (pedestrian) opening

• Pause time adjustable from 0 to 60 seconds using a trimmer.

• Obstacle detection response time adjustable from 0.1 to 3.0 seconds using a trimmer.

• Motor closing delay adjustable from 3 to 30 seconds using a trimmer

• 12 V 15 W electric lock management

• Courtesy light management

• Built-in 433 MHz receiver

• Stores up to 254 radio codes

• Reprogrammable Flash microprocessor

• Complies with the relevant European Directives: R&TTE 99/05/CE

• Supports radio remote controls with either simple fixed code or rolling code. Compatibility with other brands must be checked

WARNING: Radio Remote Control Compatibility Guide

The receiver built into the control unit is not universal; it communicates specifically with certain 433.92 MHz coding systems. Below is the exact list of compatible models:

1. Compatible ROLLING CODE Remote Controls

The control unit supports the high-security rolling code systems of the following brands and models:

Dieffematic: Equo Plus, Equo X, E010, Equo Slim and Tx-e models

BFT: Mitto and Cool models

2. FIXED CODE Remote Controls and Universal Remote Controls

If you use fixed-code remote controls, compatibility is guaranteed with:

Aster 21/a and Aster 31/1 models

Note for universal remote controls: The Aster 21/a and Aster 31/1 models can be used as "master" controls to pair commercial universal remote controls. Simply clone the code directly from one remote control to another to make them immediately operational with the control unit.

3. TECHNICAL SPECIFICATIONS

Control unit power supply: 230 VAC

Motor output: 2 x 1/2 Hp

Motor current: Max. 8 amperes

Accessory power supply: 24 VDC - 750 mA

Operating temperature: -20°C / + 55 °C

Programming parameters: stored in EE-PROM

Function controller: microprocessor with watchdog

24-month warranty
