Description
Crimping tool
Mod. CON100-CRIM
SKU: CON100-CRIM
• Crimping tool
• Capacity from 1.09 to 6.48 mm
• RG58, 59, 62, 174 cable, fiber optic
• Easy to use
• Economical price
• Adjustment screw
DESCRIPTION:

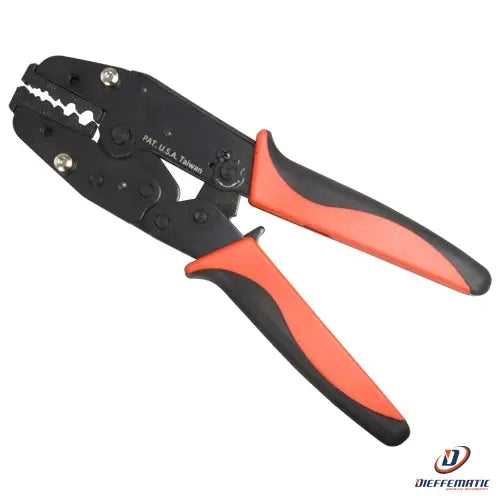

Special crimping tool for male BNC connectors, suitable for all types of coaxial cable.
This tool comes with a die ready to attach the gold center pin to the coaxial cable without soldering, as well as to secure the outer ring to the cable, ensuring a secure connection and a highly professional-quality finish. It features an adjustment screw that allows the crimp to be precisely adjusted to the exact diameter of the connector being used, for optimum results.
Compatible with our CON100 and CON110 connectors, and with RG59 and RG59U cables.
SPECIFICATIONS:
Capacity
1.09 / 1.73 / 2.54 / 3.48 / 5.41 / 6.48 mm
Compatible cable type
RG58, 59, 62, 174, fiber optic
Adjustment screw
Adjustable in 6 steps
CONTENTS:
• Crimping tool
CLICK ON THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
24-month warranty
