Description
Complete Gate Automation Kit
for DOUBLE SWING GATES
with UNDERGROUND motors
230V
+
No. 2 STAINLESS STEEL FOUNDATION BOXES
Professional
**For leaves up to 2.50 m and 500 kg**
The CROMO underground gear motor for automating new or existing swing gates.
Thanks to its ease of installation.
Using the gear motor does not require any modifications to the gate's aesthetic or functional structure, making it particularly suitable for automating historic gates.
The gear motor consists of a one-piece aluminium housing containing the reduction gear assembly and electric motor; both operate continuously in an oil bath and are enclosed in a weatherproof IP67 steel casing.
The gear motor is suitable for operating gates weighing up to 500 kg, with a leaf length of 2.50 m (when installed with an electric lock).
The CROMO gear motor is supplied with a locking mechanism (NON-REVERSIBLE).
TECHNICAL SPECIFICATIONS:
SUPPLY VOLTAGE: 230 V
MAX. CURRENT DRAW: 2.2 A
MOTOR SPEED: 1500 rpm
125° ROTATION TIME: 35 sec.
OPERATING TEMP.: -30 / + 80°
ROTATION ANGLE: 125°
LUBRICATION: HD 80W/90
WEIGHT: 9 kg
THERMAL PROTECTION: 100°
Release with dedicated key
Aluminium structure, weatherproof
HOLE DIAMETER: 15 MM
MOUNTING BASE DIMENSIONS: 22 X 20 CM
CLICK THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL
TECHNICAL SPECIFICATIONS:
SUPPLY VOLTAGE: 230 V
MAX. CURRENT DRAW: 2.2 A
MOTOR SPEED: 1500 rpm
125° ROTATION TIME: 35 sec.
OPERATING TEMP.: -30 / + 80°
ROTATION ANGLE: 125°
LUBRICATION: HD 80W/90
WEIGHT: 9 kg
THERMAL PROTECTION: 100°
Release with dedicated key
Aluminium structure, weatherproof
HOLE DIAMETER: 15 MM
MOUNTING BASE DIMENSIONS: 22 X 20 CM

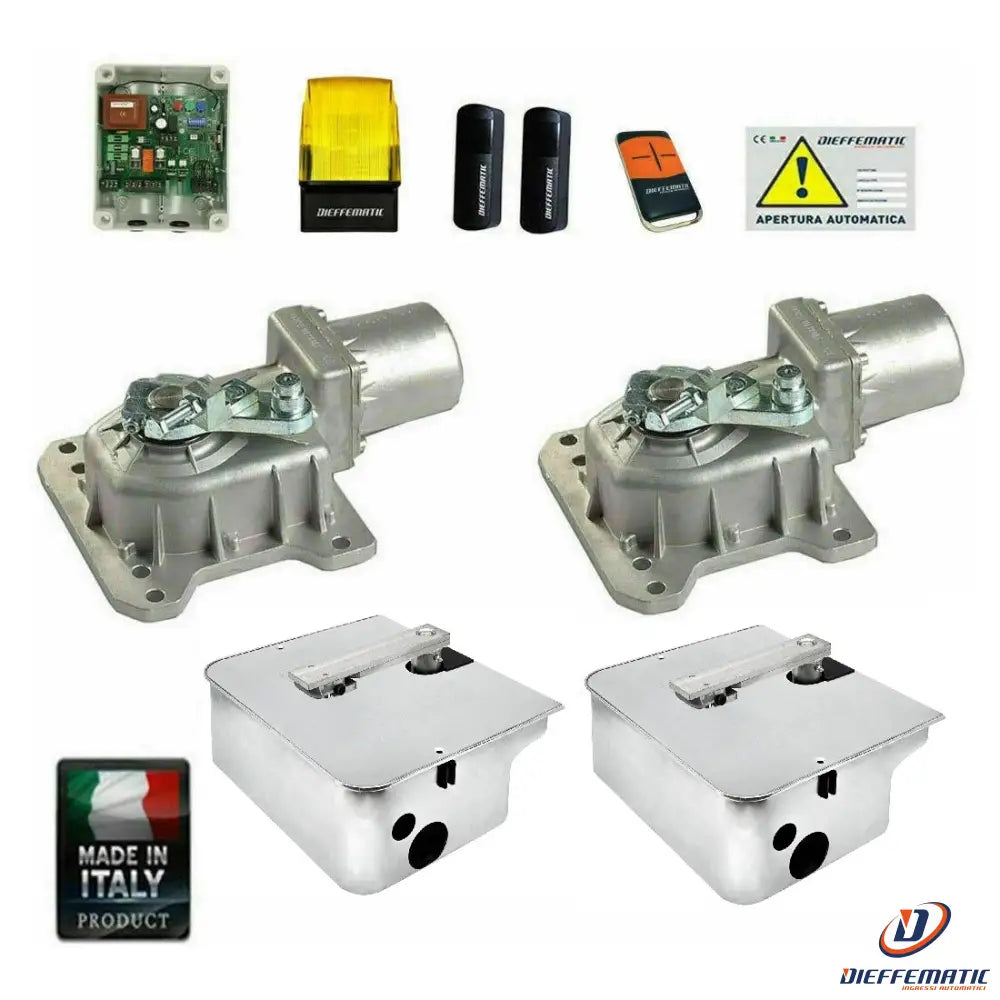

KIT CONTENTS:
No. 2 electromechanical gear motors for residential use, high-performance electric motor. Emergency release.
No electric lock required. Motor speed 1,400 rpm. Power 200 W. Adjustable thrust from 500 to 3000 N.
Maximum opening angle 125°. Power supply 230 V. Weight 9.3 kg
No. 1 control unit with weatherproof enclosure, featuring motor force adjustment trimmer and obstacle detection, slow-down during opening and closing, 4 operating modes: step-by-step, semi-automatic 1 and 2, automatic condominium mode. Pedestrian entrance, courtesy light, overvoltage protection, input for photocells and safety edges, electric lock management, reverse stroke, adjustable leaf offset during closing/opening.
No. 1 single-channel radio receiver built into the control unit (433.9 MHz)
No. 1 antenna built into the control unit, range 20 metres (433.9 MHz)
No. 1 4-channel Rolling Code remote control
No. 1 pair of wall-mounted photocells
No. 1 230V flashing light
No. 1 warning sign
No. 1 set of installation accessories
No. 1 instructions for installing the mechanical and electronic components in ITALIAN
24-month warranty
