Control Unit for 24 V Swing Gates
with 433.92 MHz Receiver

Professional

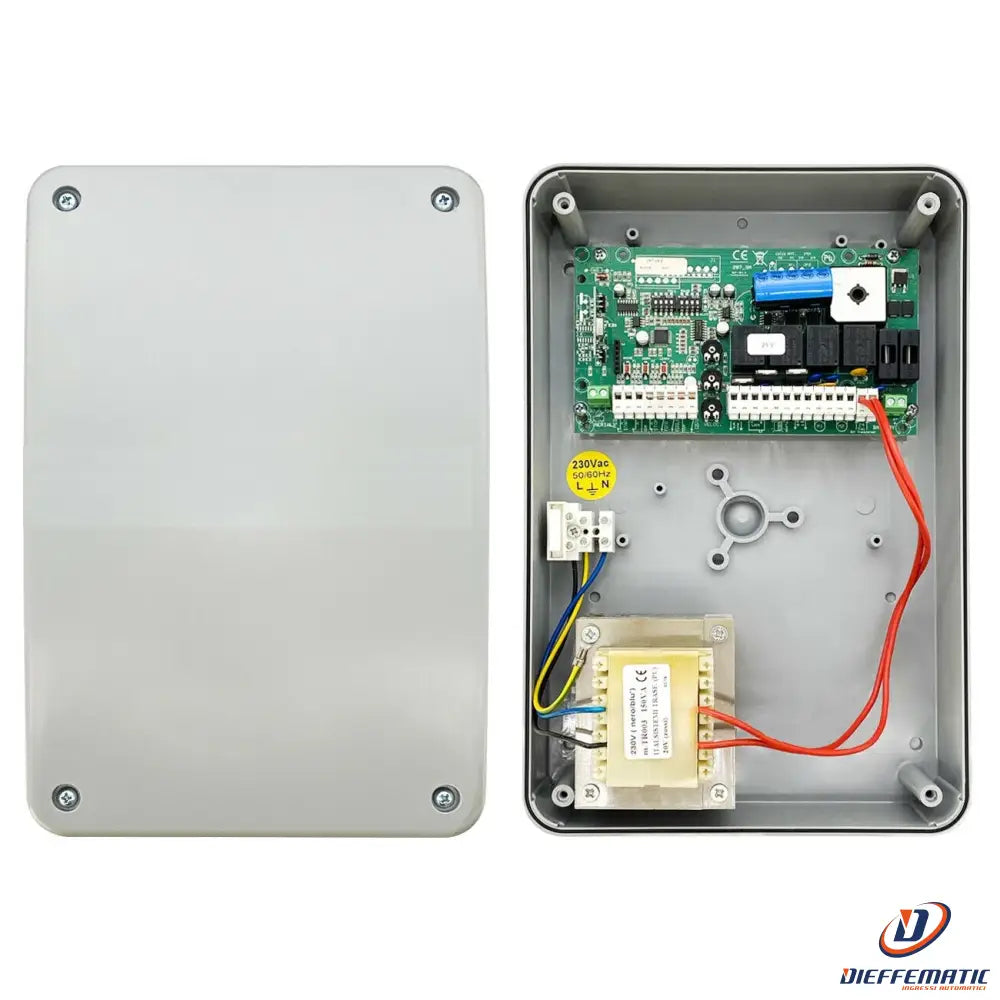

with Enclosure and Transformer

UNIVERSAL, SUITABLE FOR ALL AUTOMATION SYSTEMS

1. GENERAL INFORMATION

The self-learning universal control unit is designed to automate an access point with 1 or 2 24 V motors. It features an innovative self-learning procedure for quick installation and four trimmers for fine-tuning the main parameters: force, pause time, obstacle detection sensitivity, and closing delay between the two motors.

WARNING: Remote Control Compatibility Guide

The receiver built into the control unit is not universal, but communicates specifically with certain 433.92 MHz codes. The exact list of compatible models is provided below:

1. COMPATIBLE ROLLING CODE REMOTE CONTROLS

The control unit supports the high-security rolling code encryption of the following brands and models:

Dieffematic: Equo Plus, Equo X, E010, Equo Slim, Tx-e models

BFT: Mitto and Cool models

2. FIXED-CODE REMOTE CONTROLS AND UNIVERSAL REMOTE CONTROL MANAGEMENT

If you use fixed-code remote controls, compatibility is guaranteed with:

Aster 21/a and Aster 31/1 models

Note for universal remote controls: The Aster 21/a and Aster 31/1 models can be used as "master" remotes to pair commercial universal remote controls. Simply clone the code directly from one remote control to another to make them ready to use with the control unit.

CLICK THE LINK FOR THE INSTRUCTION MANUAL:

MANUFACTURER'S INSTRUCTION MANUAL

Available:

- rapid self-learning programming, in which the control unit automatically performs the learning cycle for operating times and sets the start of slowdown, during both opening and closing, at 90% of the cycle.

- professional programming in which the installer can determine when the leaves start slowing down, enable pedestrian opening via radio, and select the operating mode of the safety devices.

2. MAIN FEATURES

DIMENSIONS: 17 CM X 9,5 CM X 3 CM

Control and management of access automation systems with 1 or 2 24V motors (max. 1/2 Hp)

Simplified and professional self-learning procedure for acquiring: operating and slowdown times, and the presence of safety devices.

Motor force adjustable via trimmer from 50-100%.

Customizable partial (pedestrian) opening

Dwell time adjustable via trimmer from 0 to 60 seconds.

Obstacle detection response time adjustable via trimmer from 0.1 to 3.0 seconds.

Adjustable motor closing delay via trimmer from 3 to 30 seconds

12V 15W electric lock control

Courtesy light control

Built-in 433MHz receiver

255 radio codes can be stored

On-board reprogrammable Flash microprocessor via serial interface.

Complies with the relevant European Directive: R&TTE 99/05/EC

3. TECHNICAL FEATURES

Control unit power supply: 230VAC

Motor output: 2 x 1/2Hp

Motor current: Max. 8 Ampere

Accessory power supply: 24 VDC - 750 mA

Operating temperature: -20°C / + 55 °C

Programming parameters: stored in EEPROM

24-month warranty
