Description
Complete kit for single-leaf swing gate automation
Mod. PHOBOS BT B40 SMART KIT
Complete 24 V kit for swing gates weighing up to 700 kg and measuring up to 4 m in length.
Main features
• Thanks to its opening speed, PHOBOS BT B VELOCE significantly reduces waiting times and clears the driveway as quickly as possible, making it safer to enter the property. Its closing speed quickly closes the opening, reducing the risk of intrusion.
• 24 V technology and electronic control help protect people from impacts without the need for additional safety devices.
• The exclusive D-Track technology enhances automation safety by ensuring the minimum thrust required for movement and enabling adaptive force management as operating and environmental conditions change, thereby reducing maintenance requirements.
• Exclusive Hi-Tech design in line with current style trends
• The operator is among the most compact on the market and can be installed in a wide range of configurations, even where space is limited or pillars are deep.
• The exclusive Easy Set App guides the installer in determining the correct installation dimensions to achieve the desired opening angle and smooth movement.
• The upper-mounted limit switches are easy to adjust thanks to the exclusive feedback function via vibration or the flashing light (patented)
• 94% lower energy consumption in standby mode, saving 69.82 kWh per year. Energy consumption by accessories connected to the control board is not included.
Technologies
• U-Link
• EasyAXS
Technical data
Operating temperature: -20 ÷ 55 °C
Limit switch type: Magnetic
Motor voltage: 24 V
Control unit: THALIA BT A80. ZARA BT A80
Protection rating: IP44
Slowdown: Yes
Power consumption: 40 W
Operator type: electromechanical swing gate operators
Interconnectivity: Yes
Impact response: D-Track
Thrust and traction force: 2000 N
Operator weight: 5.2 kg
Locking: Mechanical
Useful rod stroke: 470 mm
Max. leaf width: 4 m
Release: Custom key
Maximum angle: 130 °
Max. leaf length without electric lock: 3 m
Maximum opening cycles per hour: 30
Operating time (90°, excluding slowdowns, with maximum leaf length and weight): approx. 16 s
Max. leaf weight: 700 kg
Control board power supply: 230 V

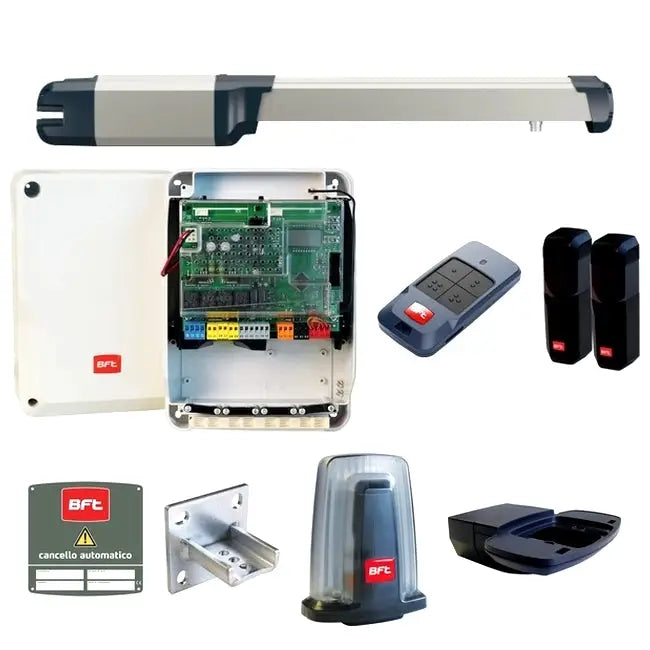

List of products included in the kit
1x 2614566 - PHOBOS BT B40: Irreversible 24 V electromechanical operator for swing gates weighing up to 700 kg and measuring up to 4 m in length. Upper-mounted magnetic limit switch.
1x 2614324 - THALIA BT A80 DUO: Control unit for 1 or 2 24 V operators for swing gates in high-complexity systems.
1x 2614120 - MITTO COOL C4: 4-channel transmitter. Range: 50/100 m. Power supply: 3 V with 1 CR2032 battery. Blue.
1x 2601411 - COMPACTA A20-180: Pair of photocells, horizontally adjustable through 180°. Range: 20 metres. Power supply: 12 - 33Vac / 15 - 35Vdc.
1x 2609053 - CMS: Warning sign.
1x 2601324 - SFR B: Short adjustable wall bracket for linear swing gate motors.
1x 2607544 - RADIUS LED BT A R1 W: Flashing light with integrated antenna for 24 V motors. White flashing light.
1x 2600837 - B 00 R02: Wall mount for B LTA series flashing light.
24-month warranty
