Description
Automation Kit for Roller Shutters
Capacity 140 kg
Professional
The quality of the materials makes this motor lightweight, quiet and compact, ensuring excellent service life.
The BIG series enables quick and easy motorisation of commercial and garage roller shutters.
Features:
Power supply 230 Vac - 50 Hz
Extremely easy to install, including on existing roller shutters,
thanks to the device's design, which allows it to be separated into two parts and reassembled on the spring shaft.
Built-in limit switches, easily adjustable.
The gearbox is irreversible and locks the roller shutter when closed, but a manual release is provided.
Electric brake factory-fitted.
Cast aluminium housing, steel alloy mechanism.
Permanent lithium grease lubrication
The motor is suitable for 60-48 mm shafts; for 42-33 mm shafts, the 42 mm shaft adapter, code RD42, must be purchased separately.
Outer crown, diameter 200 mm, 220 mm adapter included.
CLICK THE LINKS FOR THE INSTRUCTION MANUALS:

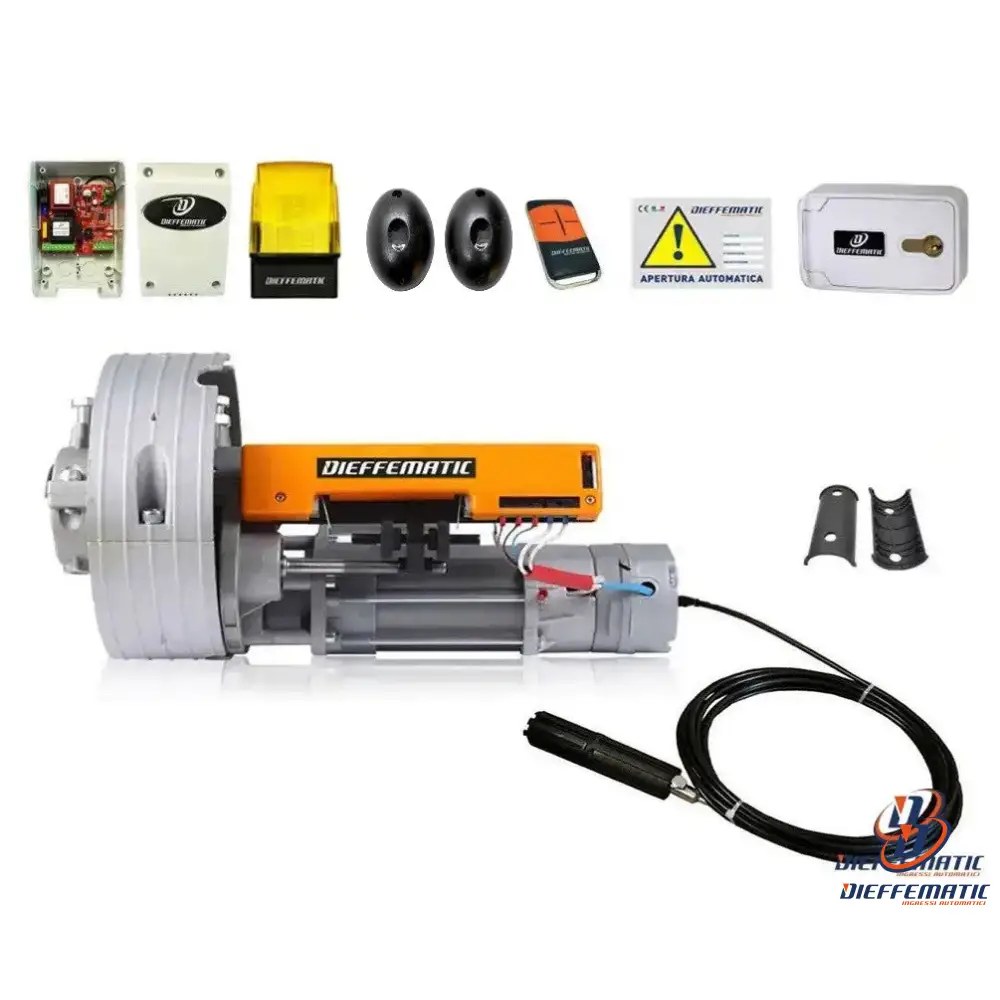

No. 1 electromechanical actuator, cast aluminium housing, high-performance electric motor.
Power supply 220 V, 50 Hz. Weight 8.3 kg
No. 1 control unit with watertight enclosure, 4 operating modes: step-by-step, semi-automatic 1 and 2, automatic condominium mode.
Surge protection, inputs for photocells and safety edge.
No. 1 single-channel radio receiver built into the control unit (433.9 MHz)
No. 1 antenna built into the control unit, range 20 metres (433.9 MHz)
No. 1 electric brake with release mechanism
No. 1 release lock with release lever and push-button panel
No. 1 4-channel rolling code remote control
No. 1 pair of wall-mounted photocells
No. 1 230 V flashing light + wall mount
No. 1 Warning sign
No. 1 Installation accessories
No. 1 Instructions for mechanical and electronic installation in ITALIAN
24-month warranty
