2g-3g Receiver With Lcd + Sim 12/24 Vac-dc Cardin Rcq433-3g10 Ex Rcq504-3g10

Save £17.00

Model: eb-222279530044
Warranty: 24 months
Supplier: Cardin-Telcoma
Price:
£318.00 £335.00

Do you need help with this product? Contact us
Whatsapp-Share

Share this product
Email-Share Whatsapp-Share Facebook-Share Copy-Share

Shipping

shipping in 2-4 business days

Description

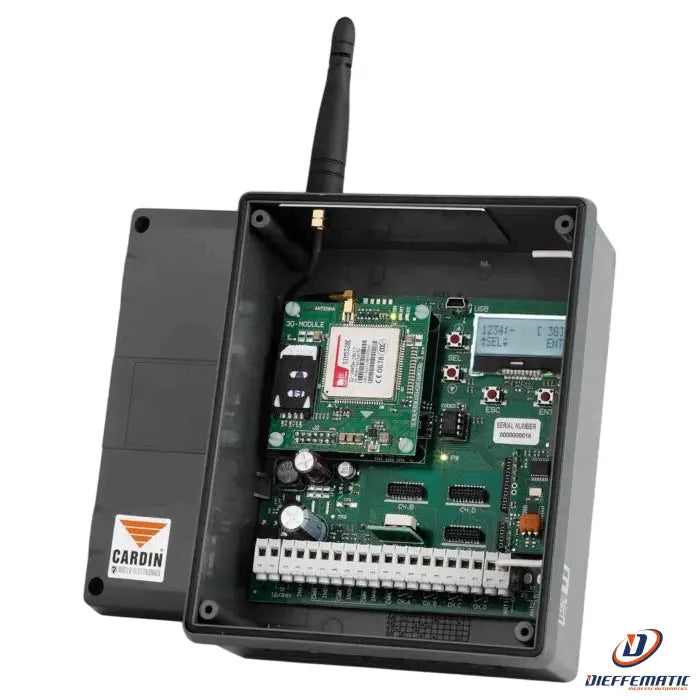

2G-3G RECEIVER WITH LCD DISPLAY + VODAFONE SIM (12/24 Vac-dc)

Outdoor container in ABS - IP55. Overall dimensions 135 x 175 x 85
The unit can accommodate up to four MCCMORPHM0 interchangeable channel modules,
programmable in impulsive, "ON/OFF" or "timed" mode. A channel strip
insert. Possibility of memorizing up to 3000 codes.
USB connection and 2G-3G/WiFi module for managing stored users and activations
of the exits.
The RCQ504-3G10 3G handset includes a 10-year subscription with partner Vodafone.

Ricevitore 2g-3g Con Lcd + Sim 12/24 Vac-dc Cardin

Mod. RCQ433-3G10 (EX RCQ504-3G10)

Thanks to a 2G-3G or WIFI module present in the equipment, an advanced software system
and a high-profile receiving device, the receiver allows you to remotely manage (without limits of
distance) any system that requires a radio control system (entrance automation,
access control, parking, etc.). Its ideal application is on systems with a high number of
users (up to 3000 transmitters that can be memorized) and which require frequent updates and modifications
codes configuration. The USB connection, the programming and adjustment keys, the efficient display,
allow you to operate in full autonomy the setting of the equipment.
For the management of the system, the device allows functions of: memorization/cancellation of codes
transmitters, programming
of the operating mode for each single output. The receiver
manages up to four programmable channel modules (impulsive/ON-OFF/timed, type of contact
NO/NC, reset on power up). The CARDINTX_SW software, downloadable from the website www.cardin.it, allows the
management of users in memory using one of three possible connection methods: direct with
USB cable, with 2G/3G module using the mobile communication network, with WIFI module. It's possible
remotely activate one or more outputs via telephone call or SMS, with 2G/3G module installed,
or via the App. Four independent inputs are also available, which can be used for monitoring
external equipment, the status of which can be checked by querying the receiver via SMS or App.
It is possible to obtain the status of the inputs via email using the CARDINTX_SW software. It's possible
configure the management of the 4 inputs available on the receiver on the Cardin software as required
of the plant. As soon as a fault occurs (resetting the status of the door position,
safety, presence/absence of power supply, etc.) the receiver sends a personalized notification to the
pre-registered email addresses. Thanks to this system, the 3G receiver becomes a real tool
help in maintenance.


24 months warranty
